What Is Springs?

A spring is an elastic mechanical device that stores energy when deformed and releases it when the deforming force is removed. Springs are everywhere — in your mattress, your car’s suspension, your retractable pen, and the mechanism that closes your front door. They’re one of the oldest and most reliable ways to store and control mechanical energy.

The Basic Physics of How Springs Work

Here’s the fundamental idea: when you stretch, compress, or twist a spring, you’re doing work on it. That work gets stored as potential energy inside the spring’s material. Release the spring, and that stored energy converts back into kinetic energy — motion.

This behavior comes from the atomic structure of the spring material itself. Metals are made of atoms arranged in crystal lattices, held together by electromagnetic forces. When you deform the metal, you’re displacing atoms from their equilibrium positions. The interatomic forces act like tiny springs themselves (yes, it’s springs all the way down), pulling atoms back toward where they want to be. As long as you haven’t pushed the atoms too far — past what’s called the elastic limit — they snap right back.

Robert Hooke figured this out in 1676 and published it as an anagram: “ceiiinosssttuv,” which unscrambled to the Latin phrase “ut tensio, sic vis” — as the extension, so the force. We now call this Hooke’s Law, and it’s one of the most useful relationships in all of physics.

Hooke’s Law: F = -kx

The math is beautifully simple. The force a spring exerts is proportional to how far you’ve deformed it:

F = -kx

Where F is the restoring force, k is the spring constant (a measure of stiffness, in newtons per meter), and x is the displacement from the resting position. The negative sign means the force always opposes the deformation — compress a spring, and it pushes back; stretch it, and it pulls back.

The spring constant k tells you everything about a spring’s personality. A stiff spring — like the valve spring in an engine — might have a k of 50,000 N/m. A soft spring in a ballpoint pen might be 100 N/m. The value depends on the material, wire thickness, coil diameter, and number of coils.

But there’s a catch. Hooke’s Law only works in the elastic region — the range of deformation where the spring returns to its original shape. Push past the elastic limit, and you enter plastic deformation territory. The atoms have been displaced so far that they’ve found new equilibrium positions. Your spring is now permanently bent, and no amount of wishing will bring it back.

Energy Storage in Springs

The potential energy stored in a spring follows directly from Hooke’s Law:

PE = ½kx²

This is a quadratic relationship, which means doubling the compression quadruples the stored energy. That’s why spring-powered devices can pack a surprising punch — a mousetrap spring, compressed just a few centimeters, stores enough energy to snap a metal bar at roughly 6 meters per second.

This energy storage principle shows up in everything from alternative energy systems using large springs for grid storage to the tiny hairsprings inside mechanical watches that release energy at precisely controlled rates.

Types of Springs

Not all springs are coils of wire. The spring family is surprisingly diverse, and each type is engineered for specific loading conditions.

Compression Springs

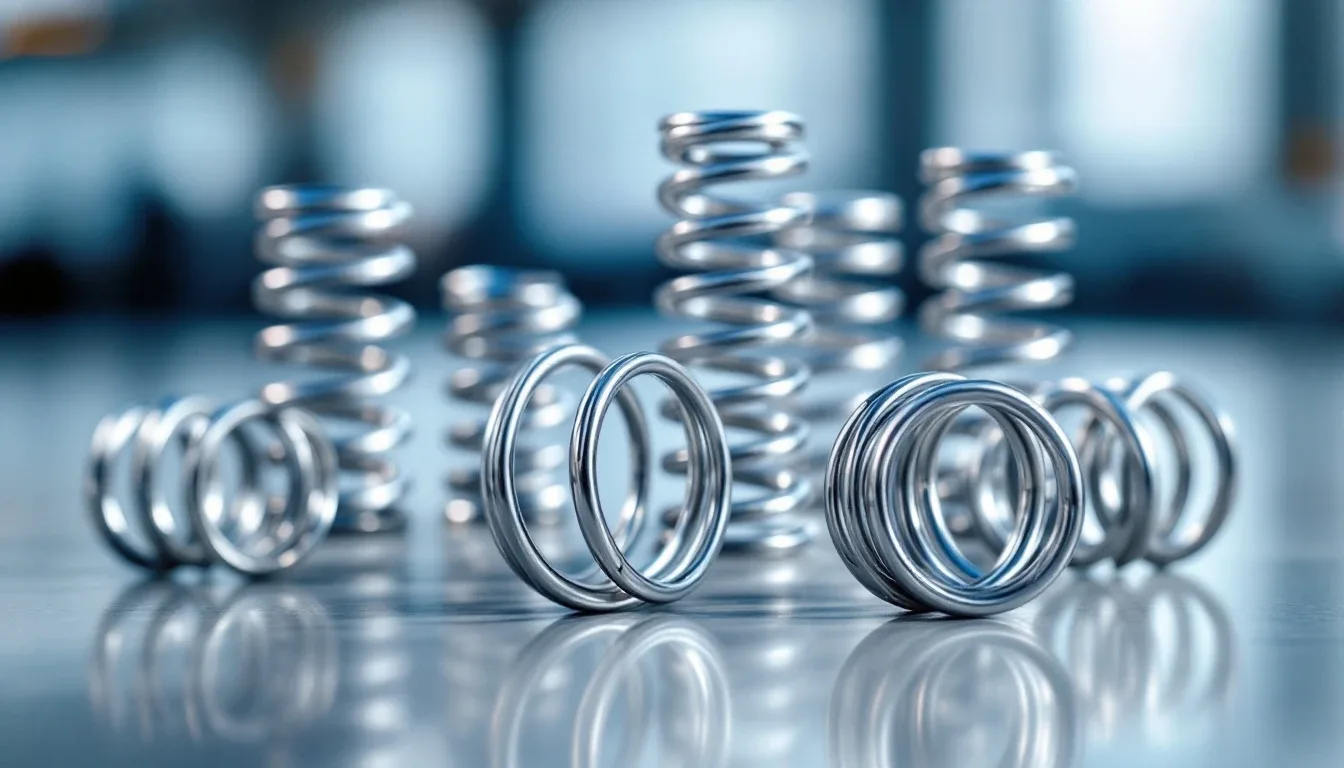

These are what most people picture when they hear “spring” — a helical coil of wire that resists being pushed together. They’re everywhere. Your car’s suspension uses them. So does every retractable pen, every mattress, and every pressure relief valve in industrial plumbing.

Compression springs work by converting axial force into torsional stress within the wire. When you push the spring’s ends together, each coil twists slightly. The wire’s resistance to twisting is what creates the restoring force. This is why the wire’s cross-sectional shape and the material’s shear modulus matter so much — they determine how much torsional stress the wire can handle.

The pitch (spacing between coils) affects behavior too. Variable-pitch compression springs get progressively stiffer as they compress, because coils with tighter pitch close up first, reducing the number of active coils. Car suspensions often use variable-pitch springs for exactly this reason — they’re soft over small bumps but stiffen up for big hits.

Extension Springs

Extension springs are the opposite of compression springs — they resist being pulled apart. You’ll find them on garage doors, trampolines, screen doors, and farm gates. They typically have hooks or loops at each end for attachment.

One important difference: extension springs usually have initial tension — a force that holds the coils tightly together even at rest. You have to exceed this initial tension before the spring starts stretching. This is why your screen door stays shut until you pull it with some force, then opens smoothly once you’ve overcome that threshold.

Torsion Springs

Torsion springs resist rotational force rather than linear force. They store energy by being twisted around their axis. Clothespins use them. So do mousetraps, clipboard mechanisms, and the counterbalance systems in automotive engineering hoods and trunk lids.

The math for torsion springs is analogous to Hooke’s Law but uses torque instead of force: T = -kθ, where T is torque, k is the torsional spring constant, and θ is the angle of twist.

Leaf Springs

These are flat strips of spring steel, often stacked in layers. For centuries, they were the primary suspension system for wagons, carriages, and early automobiles. Many trucks and heavy vehicles still use them today because they’re simple, cheap, and can handle heavy loads while also serving as a structural link between the axle and the frame.

The layered design is clever — multiple leaves of decreasing length are stacked together, with friction between layers providing natural damping. This means leaf springs don’t just store energy; they also dissipate some of it as heat, which helps control bouncing.

Belleville Washers (Disc Springs)

These cone-shaped washers are springs in disguise. Stacking them in series (same orientation) increases deflection. Stacking them in parallel (alternating orientation) increases load capacity. Engineers love them because you can create custom spring characteristics just by rearranging the stack.

They show up in bolted joints where you need to maintain preload despite thermal expansion, in clutch mechanisms, and in safety relief valves. Their compact size-to-force ratio makes them ideal when space is tight.

Constant-Force Springs

A constant-force spring is a roll of pre-stressed metal strip that exerts a nearly uniform force as it unwinds. Tape measures use them — notice how the tape pulls back with roughly the same force whether you’ve extended it one foot or ten feet. Cable retractors, counterbalance mechanisms, and some clock-making mechanisms rely on them too.

Gas Springs

Technically not springs in the traditional sense, gas springs use compressed nitrogen gas inside a cylinder to provide a spring-like force. The gas acts as the elastic medium instead of metal. You interact with gas springs every time you open a hatchback, adjust an office chair’s height, or lift a storage bed frame.

Their advantage is smooth, controlled motion. Unlike metal springs, they can be designed with built-in damping, and their force characteristics are easily tunable by changing gas pressure, piston area, and cylinder geometry.

Materials Science of Springs

The choice of material makes or breaks a spring — sometimes literally. Here’s what engineers consider.

Carbon and Alloy Steels

Most springs are made from high-carbon steel wire. Music wire (ASTM A228) is the workhorse — it has the highest tensile strength and best fatigue life of any common spring wire. The carbon content typically ranges from 0.70% to 1.00%.

For higher-temperature applications or greater corrosion resistance, alloy steels like chrome-vanadium (ASTM A231) and chrome-silicon (ASTM A401) step in. Chrome-vanadium springs can operate up to about 220°C, while chrome-silicon can handle shock loads better.

Stainless Steels

When corrosion is the enemy, stainless steel springs are the answer. Type 302/304 stainless is common for general corrosion resistance. Type 316 handles marine environments. Type 17-7 PH (precipitation hardened) offers the best combination of corrosion resistance and high strength.

The trade-off? Stainless steel springs have lower fatigue life than carbon steel springs of the same dimensions. You’re paying for corrosion resistance with reduced longevity.

Exotic Materials

For extreme conditions, exotic materials enter the picture. Inconel (a nickel-chromium superalloy) handles temperatures up to 700°C and shows up in jet engine valve springs. Titanium alloys save weight — about 45% lighter than steel for the same spring rate — making them popular in racing and aerospace. Copper alloys like phosphor bronze and beryllium copper work well for electrical contacts that need spring properties.

Why Material Matters for Fatigue

Springs fail through fatigue — the progressive growth of microscopic cracks under repeated loading. A car suspension spring might cycle millions of times over its life. Each cycle creates tiny stress concentrations, usually at the surface, that slowly propagate inward.

Surface treatments dramatically extend spring life. Shot peening — blasting the surface with small steel balls — creates compressive residual stress that resists crack initiation. This single treatment can improve fatigue life by 200-600%. Other treatments include nitriding, electropolishing, and various coatings.

Spring Design and Engineering

Designing a spring is an exercise in balancing competing demands. You need a specific force at a specific deflection, but you’re constrained by available space, material properties, fatigue requirements, and cost.

The Design Process

Engineers start with the load-deflection requirement: what force is needed, and how far must the spring compress or extend to deliver it? From there, they select a material, choose wire and coil diameters, and calculate the number of active coils needed to achieve the target spring rate.

The stress in the wire can’t exceed the material’s allowable stress, which is a fraction of the ultimate tensile strength (typically 45-50% for static applications, 30-35% for fatigue applications). The Wahl correction factor accounts for the additional stress caused by curvature and direct shear — coils near the inner diameter experience higher stress than the simplified theory predicts.

Solid height — the length when all coils are touching — sets a hard limit on compression. If the spring needs to compress further than the gap between its free height and solid height, you need a different design. Buckling is another concern: long, narrow compression springs can buckle sideways like a column under load.

Resonance and Surge

Here’s something that trips up novice engineers: springs have natural frequencies. If an external vibration matches the spring’s natural frequency, resonance occurs, and the spring oscillates wildly. This is called spring surge, and it can cause coils to slam into each other at high velocity, leading to rapid failure.

This is particularly dangerous in engine valve springs, which operate at high frequencies. Engineers counteract surge by using variable-pitch springs, dampers, or dual-spring setups where an inner spring at a different natural frequency absorbs the energy.

Computer-Aided Spring Design

Modern spring design relies heavily on finite element analysis (FEA). Software can simulate stress distributions, predict fatigue life, and optimize geometry in ways that hand calculations can’t match. This is especially valuable for non-standard spring shapes — conical springs, barrel springs, and custom wireforms where classical formulas don’t apply.

Springs in Real-World Applications

The applications of springs span nearly every industry. Here are some of the most interesting.

Automotive Suspensions

Your car’s suspension is arguably the most sophisticated spring application most people encounter daily. Modern systems combine coil springs (for energy storage) with shock absorbers (for energy dissipation) in strut assemblies. The spring rate, free height, and damping characteristics are tuned together to balance ride comfort, handling, and load-carrying capacity.

Active suspension systems — found in luxury vehicles — use electronically controlled dampers or even air conditioning-style pneumatic springs that adjust stiffness in real time. Hit a pothole, and the system can soften the spring in milliseconds. Take a sharp corner, and it stiffens to reduce body roll.

Mechanical Watches

A mechanical watch is essentially a spring-powered algorithm. The mainspring stores energy when you wind the crown. That energy flows through a gear train to the escapement, which releases it in tiny, precisely timed increments. The balance spring (hairspring) — a delicate spiral spring just a few hundredths of a millimeter thick — oscillates the balance wheel at a constant frequency, typically 3-5 Hz, keeping time accurate to within a few seconds per day.

The materials science here is extraordinary. Modern hairsprings use silicon or special alloys like Nivarox that resist temperature changes, magnetic fields, and aging. A 1°C temperature change can affect a steel hairspring’s rate by up to 0.6 seconds per day.

Medical Devices

Springs are critical in medical devices. Surgical staples are tiny formed springs. Orthodontic archwires are springs that apply controlled force to move teeth. Stents — the mesh tubes inserted into blocked arteries — are spring-like structures made from nitinol, a shape-memory alloy that expands to its memorized shape at body temperature.

Insulin pumps, auto-injectors (like EpiPens), and various surgical instruments all depend on precisely calibrated springs. The stakes are obvious — a spring failure in a medical device could cost a life.

MEMS and Micro-Springs

At the micro scale, springs get weird. Microelectromechanical systems (MEMS) use springs etched from silicon wafers, with dimensions measured in micrometers. These micro-springs are found in accelerometers (the sensor that detects when you flip your phone), pressure sensors, and micro-mirrors used in digital projectors.

At this scale, surface forces that are negligible for macro springs — things like van der Waals forces and electrostatic attraction — become significant design factors. A MEMS spring that touches an adjacent surface might stick permanently due to these forces, a phenomenon called stiction.

Seismic Protection

Buildings in earthquake-prone areas use massive spring systems for seismic isolation. The building sits on spring-based isolators that absorb and redirect seismic energy, preventing it from entering the structure. Base isolation systems in buildings like the San Francisco City Hall use lead-rubber bearings — essentially large springs with lead cores for damping — that can reduce seismic forces by 75-90%.

The History of Springs

Springs have been with us longer than written history. The bow — a bent stick with a string — is essentially a leaf spring that stores energy for launching projectiles. Bronze leaf springs appeared in chariots around 1600 BCE. But the real story of springs as engineered components begins in the 15th century.

The coiled spring appeared in European clockwork around 1400-1450. Peter Henlein of Nuremberg is often credited with creating the first spring-driven portable clock around 1510, though the exact history is debated. The development of steel production techniques in the 17th and 18th centuries made springs more reliable and affordable.

The Industrial Revolution was the spring’s golden age. Railway suspension systems, steam engine governors, and industrial machinery all demanded springs of increasing size and precision. Robert Hooke published his law in 1678, giving engineers a mathematical framework for spring design that remains the foundation of spring engineering today.

The 20th century brought new materials and manufacturing methods. Cold coiling machines automated production. Computer-aided design enabled optimization that hand calculations couldn’t achieve. And the invention of new alloys — shape-memory alloys, amorphous metals — opened possibilities that would have astonished Hooke.

Spring Testing and Quality Control

Given how critical springs are in safety-related applications, testing is rigorous.

Load Testing

The most basic test: compress or extend the spring to a specified length and measure the force. This verifies the spring rate and ensures it meets the design specification. Automated test machines can measure hundreds of springs per hour, flagging outliers.

Fatigue Testing

Fatigue testing subjects springs to millions of cycles at the expected operating deflection and measures how long they last. Testing machines can run at frequencies up to 100 Hz, meaning a million-cycle test takes less than three hours. Results are plotted on S-N curves (stress vs. number of cycles) that predict service life.

Non-Destructive Testing

Surface cracks and inclusions — internal impurities in the metal — are the starting points for fatigue failure. Magnetic particle inspection, eddy current testing, and fluorescent penetrant inspection can detect surface and near-surface defects without destroying the spring. For critical aerospace and automotive design applications, every spring in a batch might be inspected individually.

Springs vs. Other Energy Storage Methods

Springs aren’t the only way to store mechanical energy, but they have some unique advantages.

Compared to battery technology, springs have essentially unlimited cycle life (within fatigue limits), instant charge/discharge rates, and zero environmental impact. But their energy density is poor — storing meaningful energy requires large, heavy springs.

Compared to hydraulic and pneumatic systems, springs are simpler, cheaper, and require no external power source. But they can only provide force, not controlled motion without additional mechanisms.

Compared to electric motors and actuators, springs are passive — they don’t need power, don’t generate heat, and don’t fail due to electrical faults. But they offer less control and can’t provide continuous force over long distances.

The best engineering often combines springs with other systems. Your car uses springs with hydraulic dampers. Your office chair uses a gas spring with a mechanical lock. Your garage door uses extension springs with a cable and pulley system. Springs rarely work alone — they work best as part of a system.

The Future of Spring Technology

Spring technology continues to advance. Shape-memory alloys can “remember” their shape and return to it when heated, enabling springs that change their properties on demand. 3D-printed springs from titanium and other metals allow geometries impossible with traditional manufacturing. Composite springs — made from carbon fiber or fiberglass — offer weight savings of 50-70% over steel for automotive applications.

At the nanoscale, researchers are studying springs made from carbon nanotubes and graphene, which could store extraordinary energy density. A carbon nanotube spring, if scaled up, would theoretically store more energy per kilogram than lithium-ion batteries.

Even the humble coil spring isn’t done evolving. Smart springs with embedded sensors can monitor their own stress, deflection, and temperature in real time, transmitting data wirelessly for predictive maintenance. In civil engineering, self-monitoring spring systems could warn of fatigue failure before it happens.

Springs may be one of the oldest mechanical devices, but they’re far from obsolete. Every time engineers face the challenge of storing, controlling, or releasing mechanical energy, the spring — in one of its many forms — remains one of the most elegant solutions available.

Frequently Asked Questions

What is Hooke's Law?

Hooke's Law states that the force needed to extend or compress a spring is directly proportional to the distance of deformation — usually written as F = -kx, where k is the spring constant and x is the displacement. The law holds true only within the elastic limit; push a spring too far and it deforms permanently.

What are the main types of springs?

The three most common types are compression springs (which resist being pushed together), extension springs (which resist being pulled apart), and torsion springs (which resist twisting). Beyond these, there are leaf springs, Belleville washers, constant-force springs, and gas springs — each designed for specific loading conditions.

Why do springs eventually wear out?

Springs fail through a process called fatigue. Repeated loading and unloading creates microscopic cracks in the metal that grow over time until the spring fractures. Environmental factors like corrosion, high temperatures, and hydrogen embrittlement can accelerate this process. Most industrial springs are rated for a specific number of cycles before replacement is recommended.

What materials are springs made from?

Most springs are made from high-carbon steel or alloy steel because these materials have excellent elastic properties. For corrosive environments, stainless steel or phosphor bronze is used. Specialty springs might use titanium, Inconel (for extreme heat), or even rubber and composite materials. The key requirement is that the material returns to its original shape after deformation.

How is the spring constant determined?

The spring constant (k) depends on the material's shear modulus, the wire diameter, the coil diameter, and the number of active coils. For a helical compression spring, k = (G * d^4) / (8 * D^3 * N), where G is the shear modulus, d is wire diameter, D is mean coil diameter, and N is the number of active coils. In practice, engineers often measure it experimentally by applying known forces and measuring deflection.
